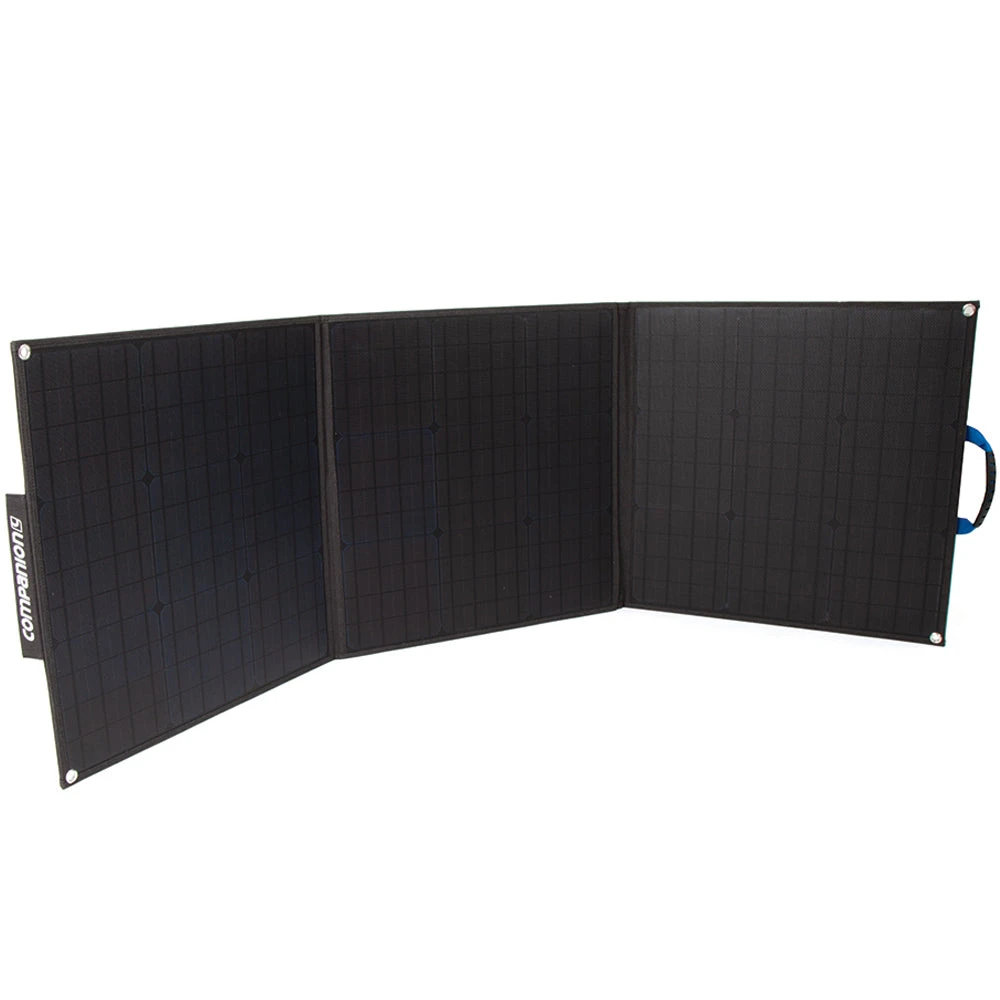

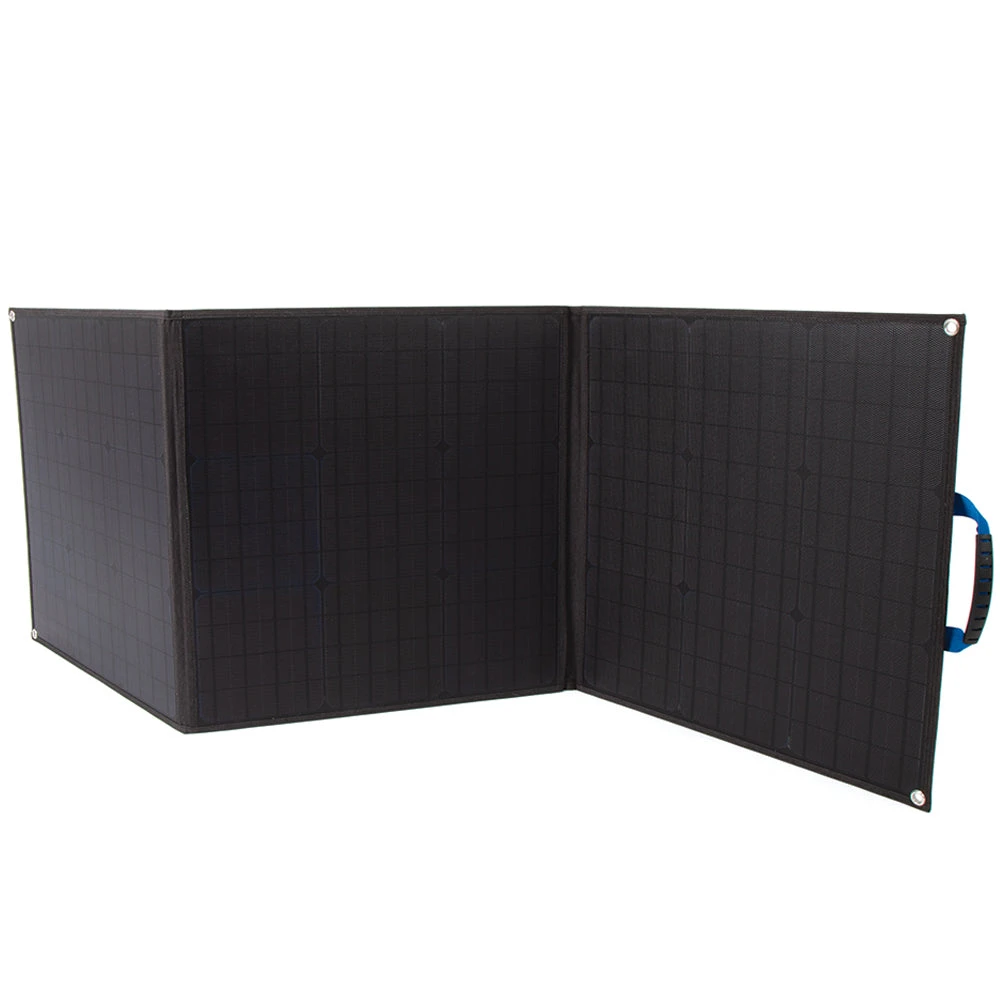

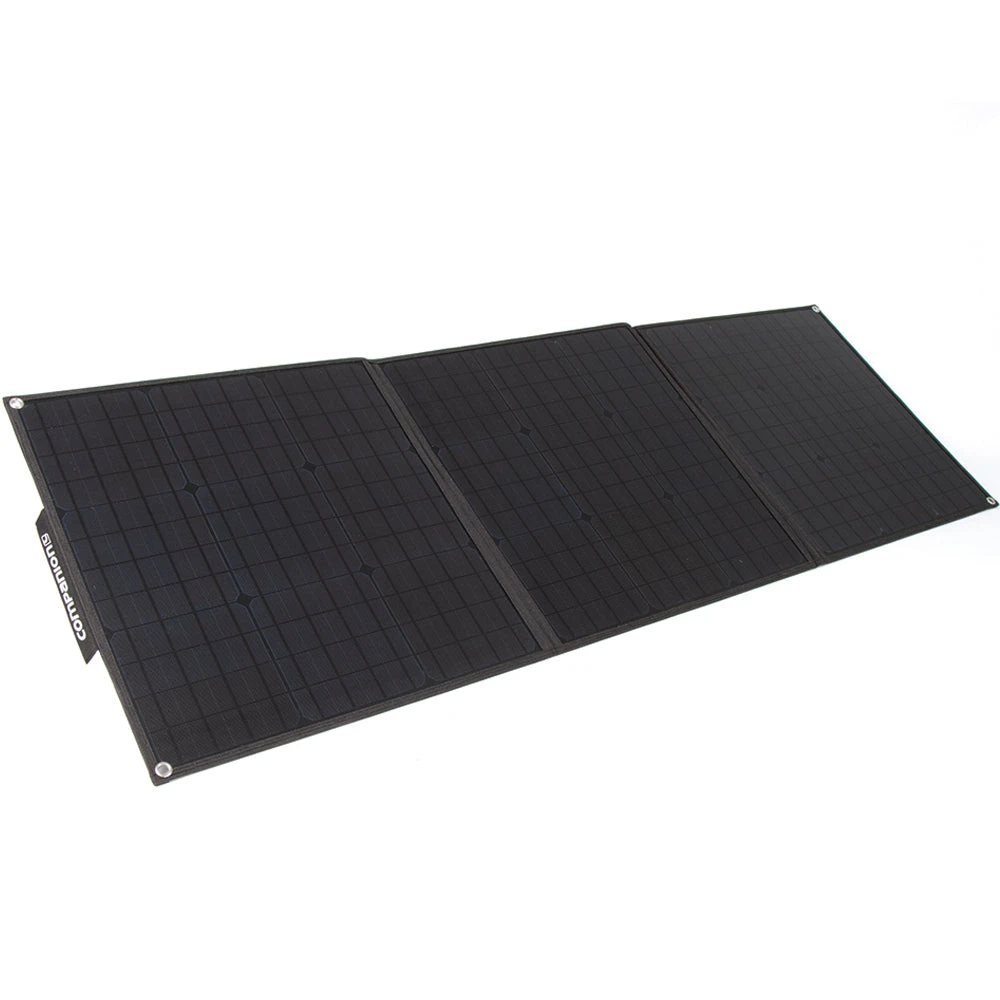

Companion 120W Solar Panel Charger

A compact to store yet highly efficient way to charge your batteries while you’re off grid, the Companion 120 watt Solar Charger is the complete solar charging package.
Featuring A-grade monocrystalline silicon cells encapsulated in a weather resistant ETFE lamination coupled with an inbuilt fully adjustable stand system to allow you to dial in the panel angle for maximised output.
The 120W Solar Charger is designed to charge 40Ah to 250Ah batteries.

Features

• Made to charge 40AH to 120AH batteries
• High efficiency solar cells
• Weather Resistance ETFE lamination
• Maximum output of 6.67A per hour

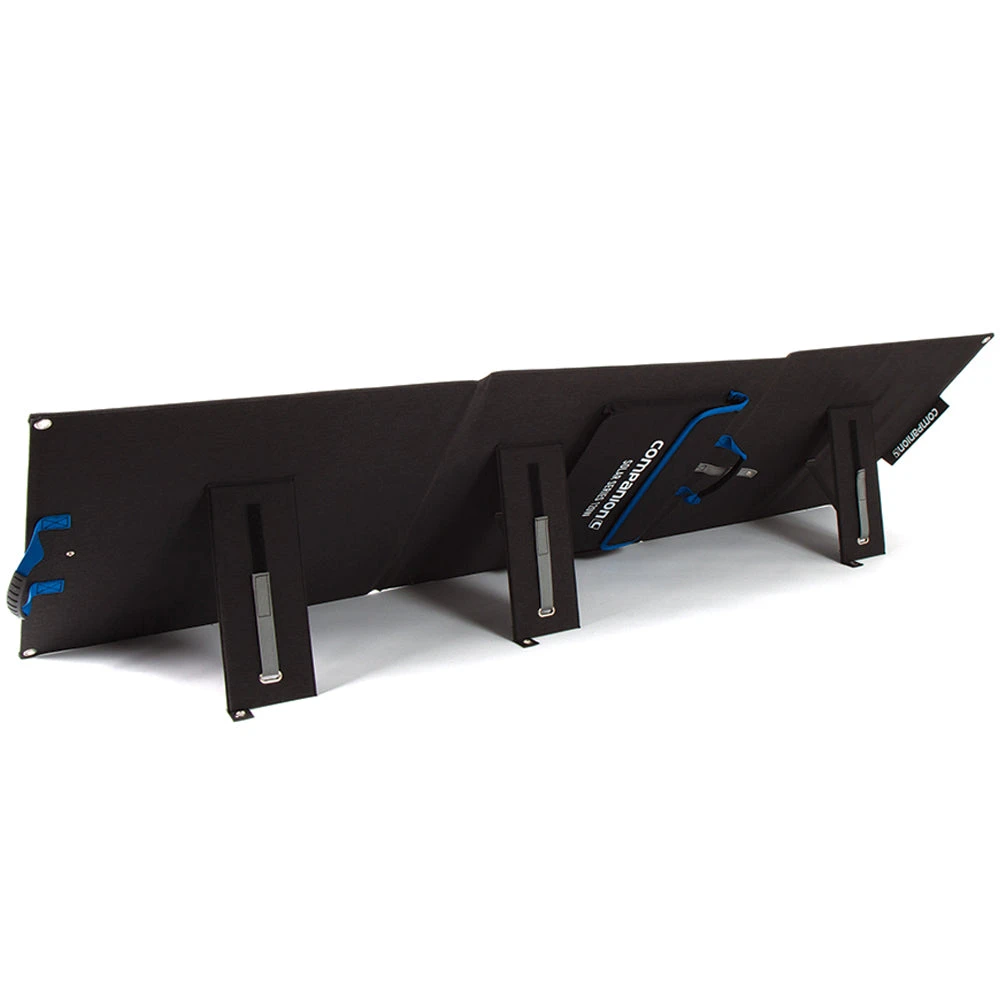

• Inbuilt adjustable stand system for maximised output with peg down point
• Chainable system; connect two 120W solar chargers together to double output
• Reinforced eyelets
• Accessory pocket

Specifications

• Dimensions: 155 x 52.5 x 3 cm
• Pack Size: 52.5 x 52.5 x 6 cm
• Weight: 5.5kg (panel only)
• Cell Type:  A-grade monocrystalline silicon
• Cell Efficiency: 19.5%
• Cell Backing: Copper
• Cell Encapsulation: ETFE Lamination
• Wattage: 120W
• Max Amp Output Per Hour (lmp): 6.67A
• Voltage at Max Power (Vmp): 18V
• Open Circuit Voltage (Voc): 21.6V
• Short Circuit Current (lsc): 7A
• Output Connection: 50A Anderson
• Case Material: 900D Polyester
• Controller Type: Pulse Width Modulation (PWM) – Adjustable Settings
• Controller Stages: 3
• Controller Amps: 20A
• Types of Batteries it can Charge: AGM, Gel, Calcium, Li-Ion, LiFePO4, LiNiMnCoO2 (NMC)
• Input and Ouput Connectors: 50A Anderson

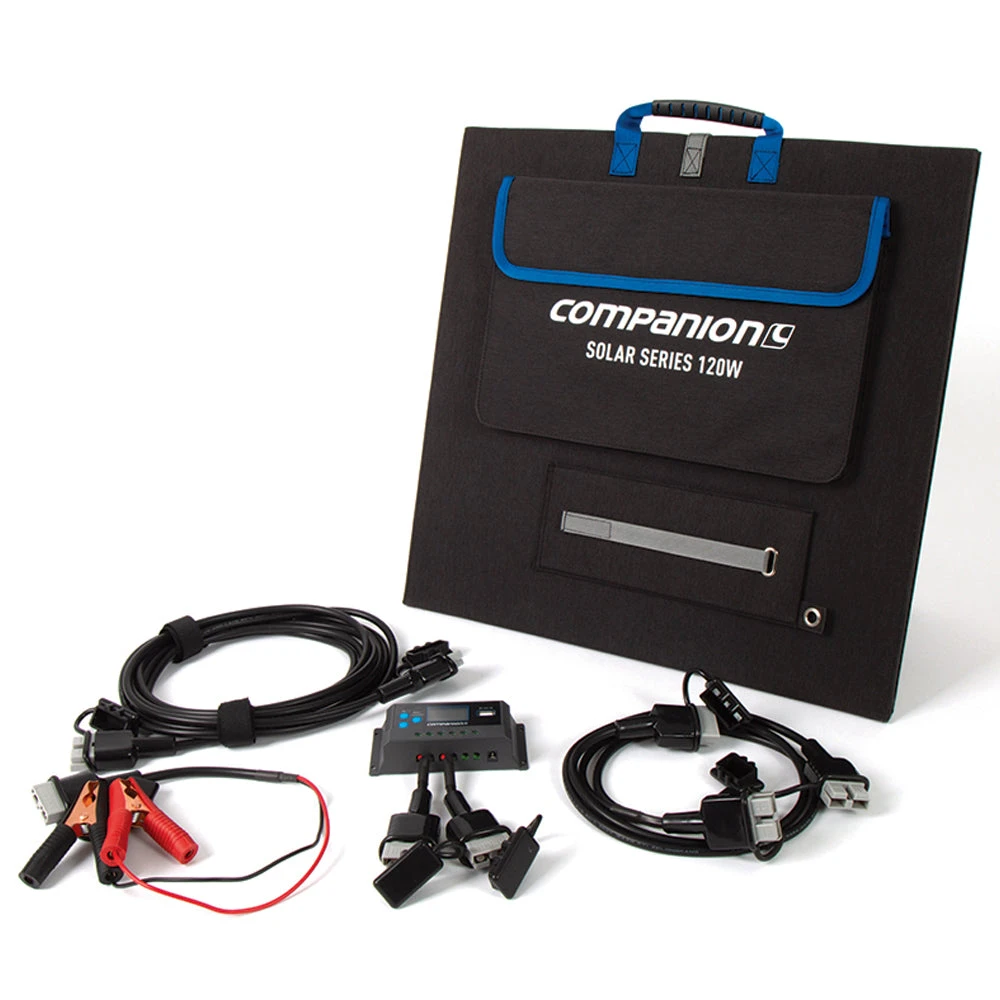

Pack Contents

• 1 x Solar Charger 120W
• 1 x 20A PWM Controller with 2 x Anderson Connectors
• 1 x 5m Anderson Cable
• 1 x 0.5m Anderson to Battery Clamp Cable
• 1 x 2m Anderson Splitter Cable (for use when linking 2 x 120W solar panels together)
