Companion 200W Solar Panel Charger

A compact to store yet highly efficient way to charge your batteries while you’re off grid, the Companion 200 watt Solar Charger is the complete solar charging package.

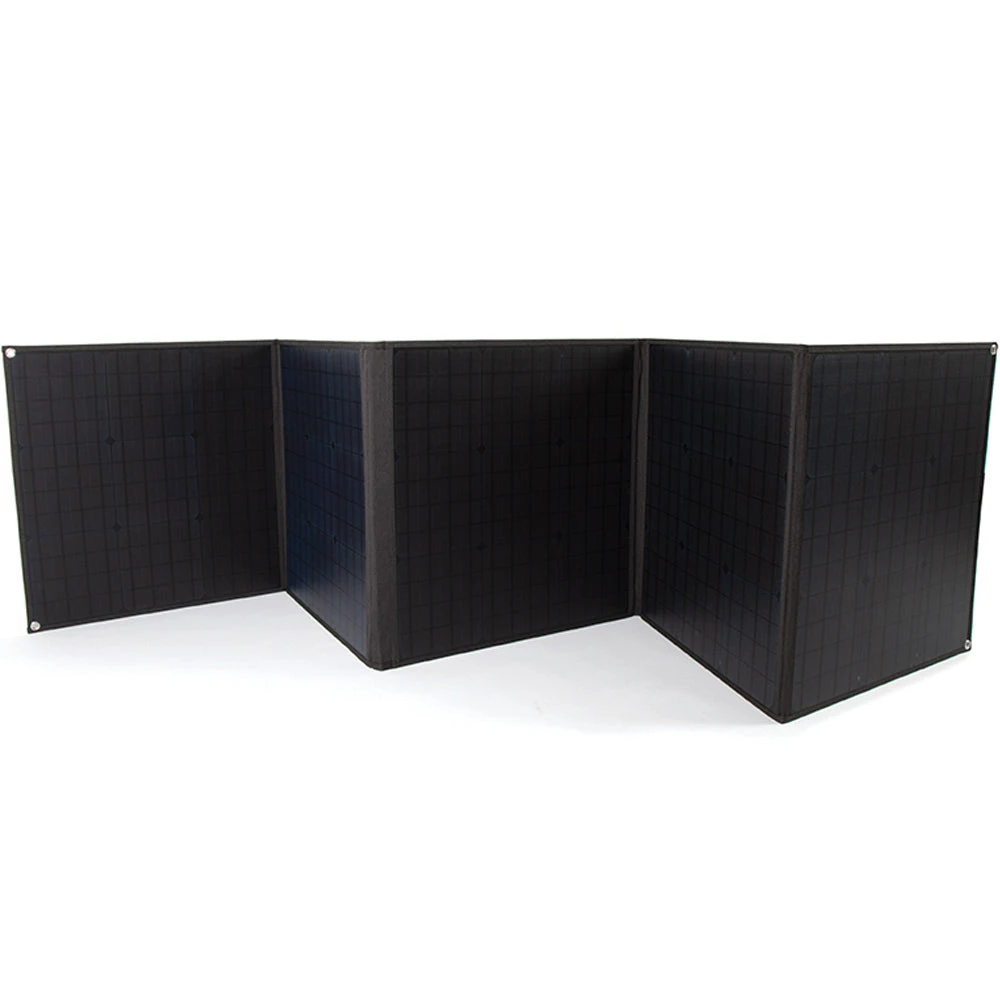

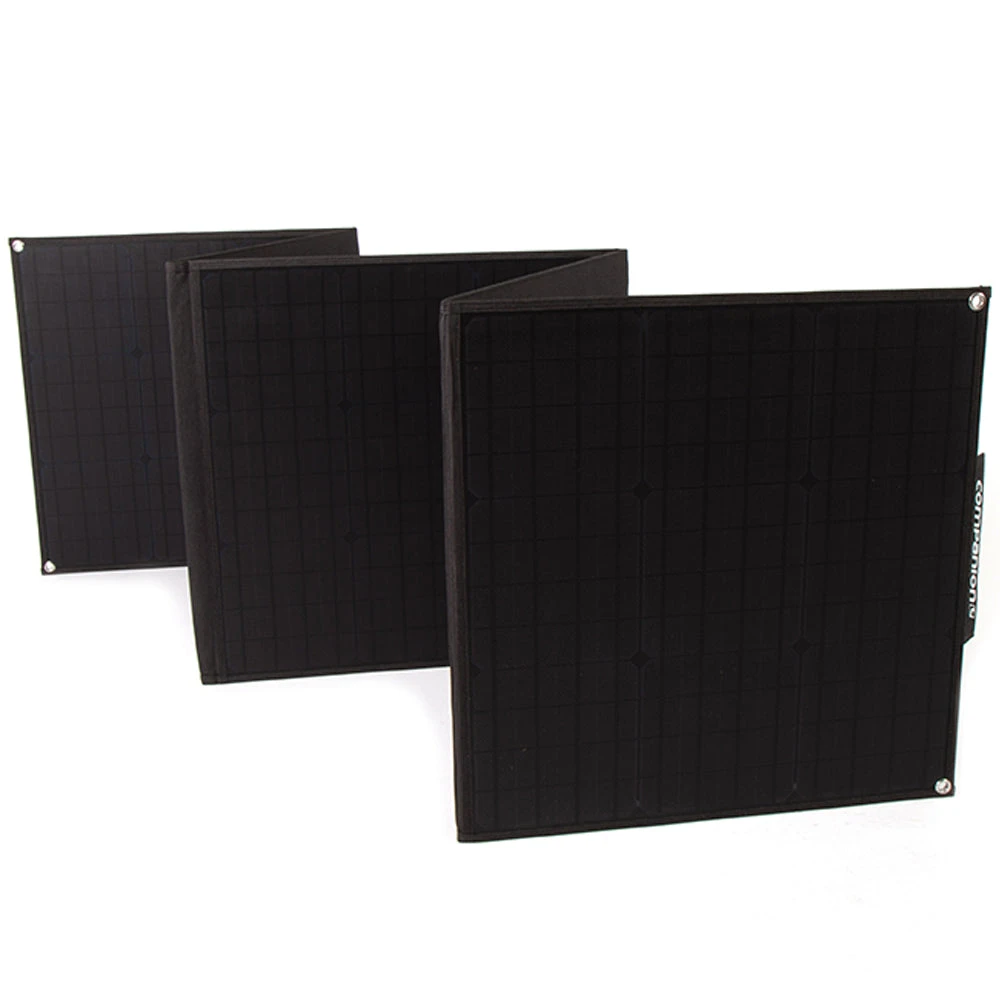

Featuring A-grade monocrystalline silicon cells encapsulated in a weather resistant ETFE lamination coupled with an inbuilt fully adjustable stand system to allow you to dial in the panel angle for maximised output.
The 200W Solar Charger is designed to charge 70Ah to 250Ah batteries.

Features

• Made to charge 70AH to 250AH batteries
• High efficiency solar cells
• Weather Resistance ETFE lamination
• Maximum output of 11.1A per hour

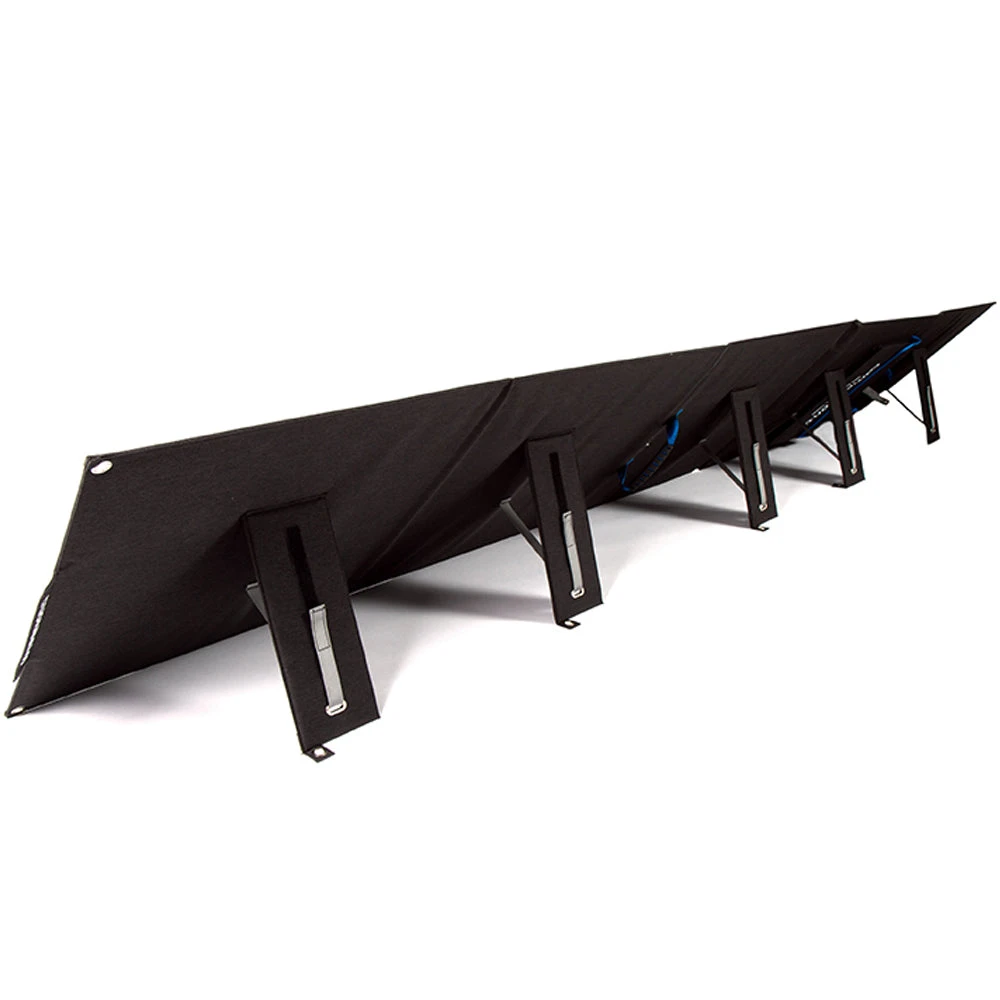

• Inbuilt adjustable stand system for maximised output with peg down point
• Lithium battery compatible 20A controller
• Reinforced eyelets
• Accessory pocket
• 2 year warranty

Specifications

• Dimensions: 261 x 52.5 x 3 cm
• Pack Size: 52.5 x 52.5 x 9.5 cm
• Weight: 9kg (panel only)
• Cell Type:  A-grade monocrystalline silicon
• Cell Efficiency: 19.5%
• Cell Backing: Copper
• Cell Encapsulation: ETFE Lamination
• Wattage: 120W
• Max Amp Output Per Hour (lmp): 11.1A
• Voltage at Max Power (Vmp): 18V
• Open Circuit Voltage (Voc): 21.6V
• Short Circuit Current (lsc): 11.7A
• Output Connection: 50A Anderson
• Case Material: 900D Polyester
• Controller Type: Pulse Width Modulation (PWM)
• Adjustable Settings
• Controller Stages: 3
• Controller Amps: 20A
• Types of Batteries it can Charge: AGM, Gel, Calcium, Li-Ion, LiFePO4, LiNiMnCoO2 (NMC)
• Input and Ouput Connectors: 50A Anderson

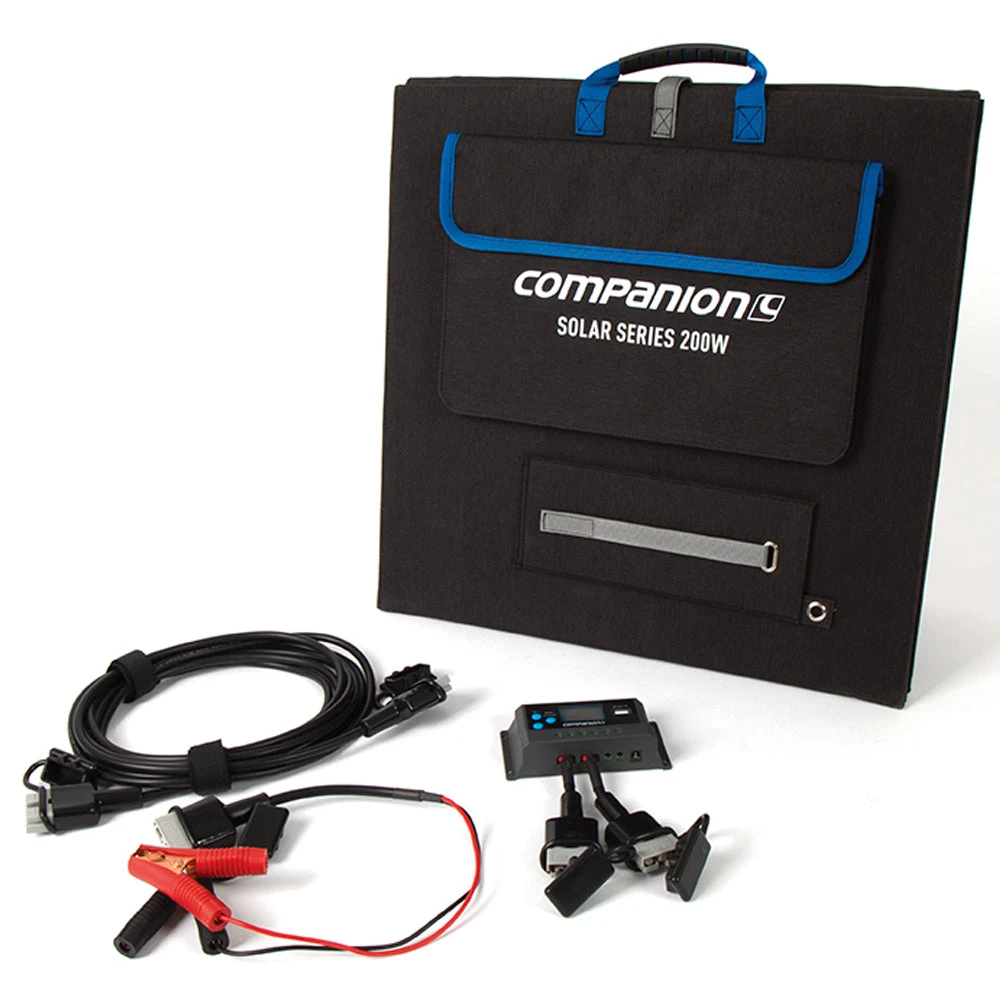

Pack Contents

• 1 x Solar Charger 200W
• 1 x 20A PWM Controller with 2 x Anderson Connectors
• 1 x 5m Anderson Cable
• 1 x 0.5m Anderson to Battery Clamp Cable
