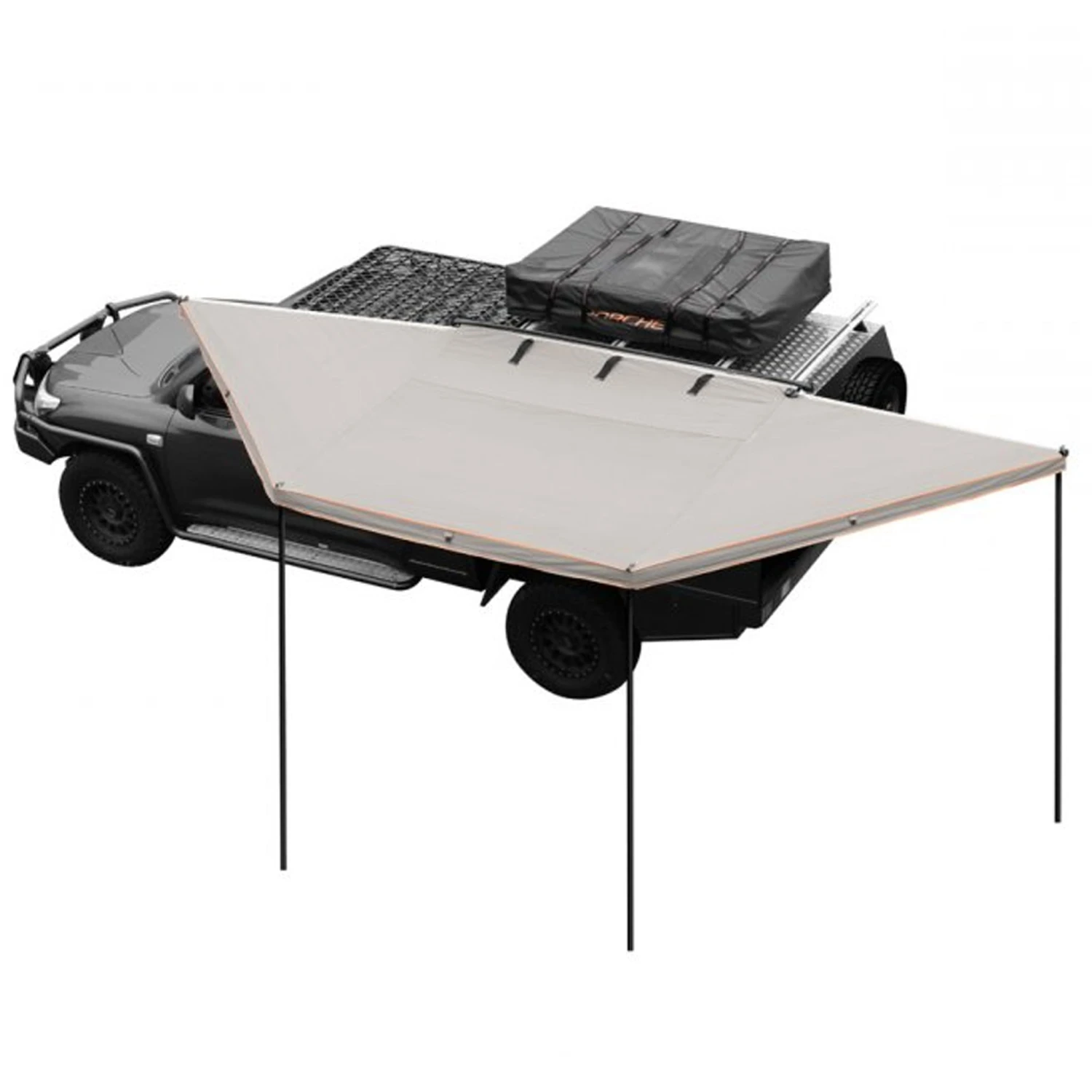

Eclipse 180° Awning – Gen II

The Eclipse 180° Awning can be mounted to either side of your vehicle and is ideal for dual, single and space cabs as well as general canopy and wagon setups. Designed for quick and easy setup and pack down by one person, this awning provides 8.2m² of cover over the length of the vehicle. With a heavy duty steel and alloy swivel hinge system on both ends, the awning spans 6m along the vehicle and features two pivoting alloy telescopic leg poles which pack away neatly along the rafters. Constructed with hard wearing proofed poly/ cotton ripstop canvas and a strong lightweight box tube alloy rafter system, the awning weighs in under 17kg and is covered by a 2 year warranty.

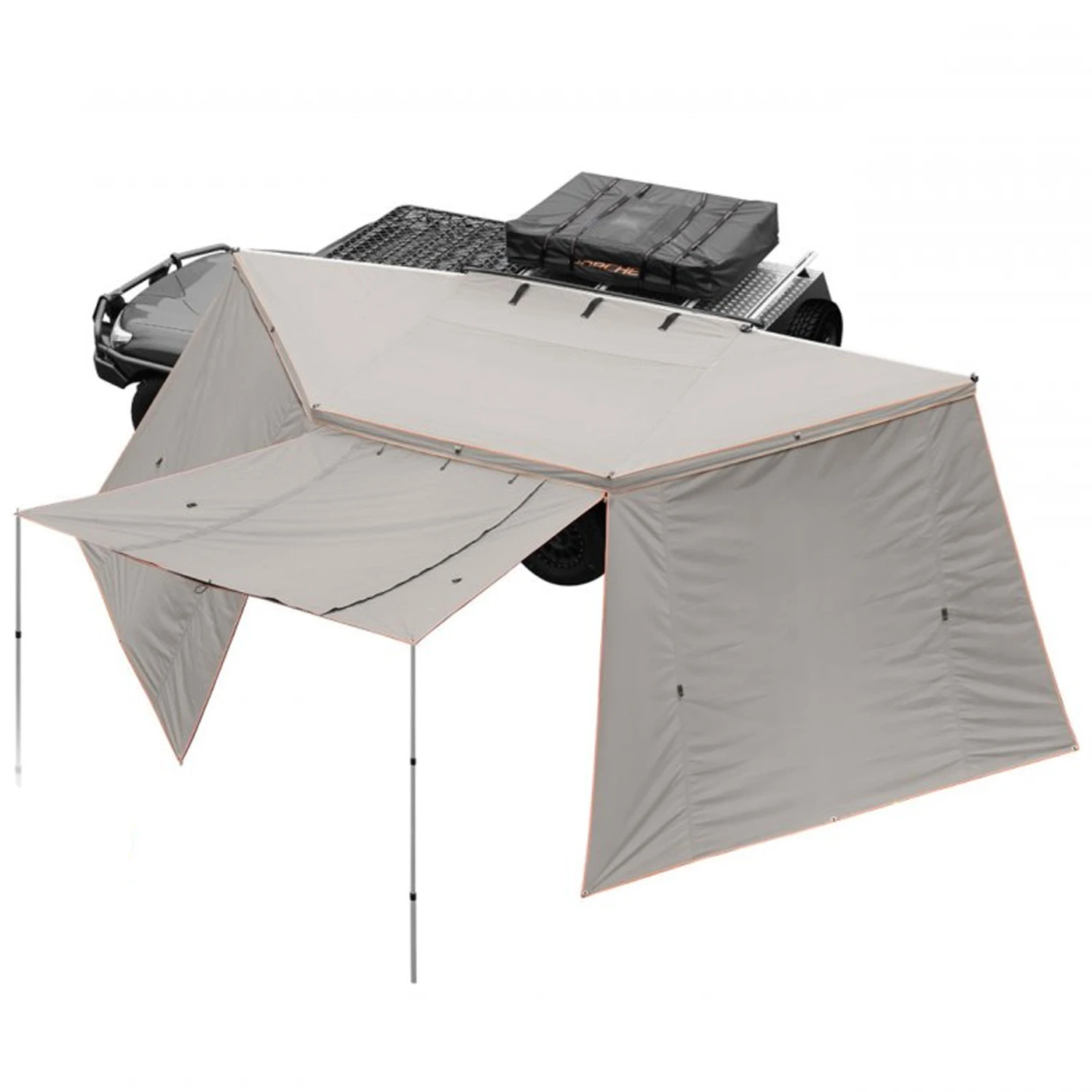

Add an optional wall to the Eclipse 180° Awning to complete your 4×4 touring/camping setup. The optional wall can be set up as a wind and weather break, or as an awning extension. With walls fitted and anchored down, approx. 16.5m² of coverage will be achieved depending on height of vehicle. The walls are manufactured with Darche’s proven and hardwearing proofed poly-cotton ripstop canvas.

**Walls sold separately

Features

• 8.2m² of cover easily mounted to passenger or driver’s side of the vehicle
• Designed as a freestanding unit for easy setup and pack down only
• Easily set up by one person
• Aluminium hinge system. Hinged from both ends, the awning spans 6 metres along the side of the vehicle
• 320gsm polycotton grid ripstop canvas
• Lightweight box tube alloy rafters
• The Eclipse 180° Awning features two pivoting alloy telescopic leg poles which are neatly stowed along the rafter when packed away
• Two additional leg poles in a separate carry bag are also included
• 1500mm PU waterproofing with HF seam sealing
• 3 heavy duty brackets with fixings, holding straps, guy ropes and pegs included
• Optional wall available (sold separately)
• * Ensure awning is anchored with supplied guy ropes and pegs at all times when in use

Specifications

• Dimensions: 6000mm x 2000mm x 2100mm (average height)
• Coverage: 8.2m²
• Packed Size: Approx. 2200mm x 200mm x 150mm
• Weight: 16.6kg
• Material: 320gsm polycotton
• Waterhead: 1,500mm
• Warranty: 2 Year factory warranty
